Features & Specification
Direct replacement for T8, T10, & T12 fluorescent
Universal 90—277 volt AC operation No ballast = Low maintenance costs over lamp life.
Energy saving, environment friendly.
Body construction: Aluminum back with PC cover
Front shell: frost, clear and prismatic cover available
View angle: 120 degree
Power factor: > 0.9
Solid-state, high shock/vibration resistant
Maintenance free, easy installation, energy saving, No UV, no mercury
Extreme efficiency: >70% more efficient than the traditional fluorescent tubes
Long lifespan: 50,000+ hrs (5+ years)
Number of LEDs per 4 ft. tube -258 & 2 ft 120.
Working temperature – 10-40 degree Celsius.
Low power consumption, high intensity
LED Tube Light Install Instruction
|
1. Traditional tube of connection modes ：electronic ballast wiring diagram as below： |

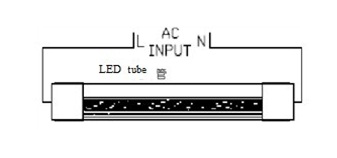

2.Connection mode of LED tube：remove ballast and(or)starter，connect the L-line and N-line to two sides of supporter，as below
